Sugarcane Crusher Machine For Jaggery Plant

Sugarcane Crusher Machine For Jaggery Plant

95000.00 INR/Set

Product Details:

  • Material MILD STEEL
  • Capacity 10 TONS IN 24 HOURS Ton/day
  • Click to view more
X

Price And Quantity

  • 95000.00 INR/Set
  • 1 Set

Product Specifications

  • MILD STEEL
  • 10 TONS IN 24 HOURS Ton/day

Trade Information

  • Others
  • 2 Week
  • All India

Product Description

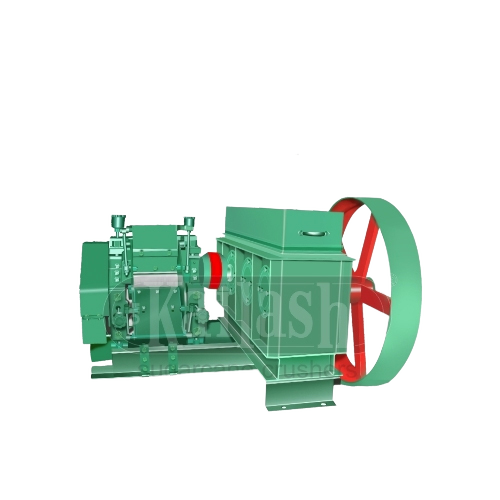

Sugarcane crusher machine for jaggery plant

OM KAILASH NO. 1.5 HEAVY MODEL
SUGARCANE CRUSHER WITH HELICAL GEAR BOX 190 MM Dia 190 MM LENGTH - Size -7.5 x  7.5

Mills-1, Cast Iron Graded Rollers 3.

A-    Roller Dia - 190 mm Length - 190 mm,

B-    Roller Dia - 190 mm Length - 190 mm,

C-     Roller Dia - 175 mm Length - 190 mm,

  • Mill base fabricated from Mild Steel channels.
  • Side Plate fabricated from tested mild steel plates.
  • 70 mm Thick Graded M.S. Shafts.
  • A,B & C Roller Gun Metal Full Round Bush with Holder.
  • Top Caps fabricated from M.S. Plates.
  • Side Caps fabricated from M.S. Plates.
  • Long Studs to hold the Side Caps from the both sides.
  • Setting Keys for B&C Roller Holder to avoid movement.
  • Heavy & Big Grease Cup & Pipes.
  • A,B Roller Scrapers fabricated from M.S. plates.
  • C-roll Scraper Stand & C-roll Scrape fabricated M.S. plates.
  • Crusher Side Gear shall be having hub cut 11 teeth.
  • Crusher side cover shall be fabricated from M.S. Sheet.
  • Sugarcane Bagasse Exit Window shall be fabricated from Mild Steel plates.
  • Juice Collecting bottom Tray shall be Mild Steel.
  • Single Coupling - Rpm -7 / 8.
  • Oil bath Rain proof Helical Gear Box,
  • Gear Box cover shall be fabricated from M.S. Sheet
  • Tapper Roller  Bearings,
  • Master Gear Helical, Master Gear Pinion Helical,
  • Intermediate Gear Straight, Fast Pulley Pinion Straight,
  • Crushing Capacity -350-400 Kgs Per Hour / 10 Tons For 24 Hours.
  • H.P. Required 5 H.P., Diesel Engine H.P. Required “ 8 H.P.
